Dynatrace

Last updated 1 month ago

Was this helpful?

Overview

is a monitoring and observability platform. Integrate Dynatrace with Cortex to get insights into application performance, service discovery, SLOs, and dependencies.

How to configure Dynatrace with Cortex

Prerequisite

Before getting started, generate an with the scopes Read entities and Read SLO.

Configure the integration in Cortex

  1. In Cortex, navigate to the :

    1. In Cortex, click your avatar in the lower left corner, then click Settings.

    2. Under "Integrations", click Dynatrace.

  2. Click Add configuration.

  3. Configure the Dynatrace integration form:

    • Domain: Enter your necessary to access your environment, depending on whether you use managed, SaaS, or the Environment ActiveGate version.

    • *API token: Enter the access token you generated in Dynatrace.

  4. Click Save.

If you’ve set everything up correctly, you’ll see the option to Remove Integration in settings.

You can also use the Test configuration button to confirm that the configuration was successful. If your configuration is valid, you’ll see a banner that says “Configuration is valid. If you see issues, please see documentation or reach out to Cortex support.”

How to connect Cortex entities to Dynatrace

Import entities from Dynatrace

Editing the entity Entity descriptor

Entity ID

Entities with a type of "SERVICE" will be discovered and surfaced. When using the Dynatrace portal, service IDs can be found in the URL of a selected service under the id query param. For example, https://.live.dynatrace.com/#newservices/serviceOverview;id=

x-cortex-apm:
  dynatrace:
    entityIds:
      - mock-service-id-1
      - mock-service-id-2

Entity name

x-cortex-apm:
  dynatrace:
    entityNameMatchers:
      - "foo.*"

Linking SLOs in Cortex

Dynatrace supports service-level objective (SLO) monitoring. You can link these SLOs to your Dynatrace entity in Cortex:

  1. In Dynatrace, navigate to the Service-Level Objectives app.

    • On the left sidebar of Dynatrace, click Search, then type in slo to find the app.

  2. In your browser's URL bar, locate the ID in the URL. Copy the ID and store it in a secure location, as you will need this value in the next steps.

    • On the SLOs page, expand the details for each SLO to display the SLO ID in the URL.

  3. Open your Cortex home page, then navigate to the service you are configuring.

  4. In the upper right corner of the service page, click Switch to YAML.

  5. Paste in the following text, making sure to replace slo-id-1 and slo-id-2 with the SLO IDs you obtained from the Dynatrace URL in the previous steps:

x-cortex-slos:
  dynatrace:
    - id: slo-id-1
    - id: slo-id-2
  1. At the bottom of the page, click Save.

After saving, navigate back to your service details page to view the SLO status in the service's Overview tab.

Dependencies

Discovery audit

Expected results

Entity pages

With the Dynatrace integration, you'll see SLOs on an entity's home page. High-level information about SLOs appears in the Overview tab.

Click Monitoring in the entity's sidebar to see more detailed data: the SLO name, its target(s), and the current value for that entity.

Relationship graphs

Scorecards and CQL

With the Dynatrace integration, you can create Scorecard rules and write CQL queries based on Dynatrace SLOs.

SLOs

SLOs associated with a given entity via ID or tags. You can use these data to check whether an entity has SLOs associated with it and if those SLOs are passing.

  • History

  • ID

  • Name

  • Operation

  • Remaining budget

  • SLI value

    • Datum

    • Timeseries

  • SLO target

  • Source

  • Thresholds

    • Name

    • Threshold

Definition: slos()

Examples

For a Scorecard focused on operational maturity, this expression can be used to make sure an entity has associated SLOs in Dynatrace:

slos().length > 0

This rule checks that there is at least one SLO is set up. While this rule makes sense in a Scorecard's first level, a rule checking the status of the SLO would make sense in a higher level:

slos().all((slo) => slo.passing)

Entities will pass this rule if all SLOs associated with it have "passing" status.

Background sync

Cortex conducts a background sync of Dynatrace entities at 7 a.m. UTC and a dependency sync every day at 12 a.m. UTC.

See the for instructions on importing entities.

You can also match entities based on matching with a regular expression, like:

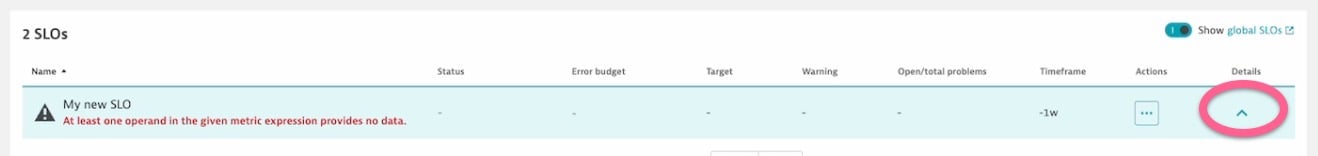

On the SLOs page, see the list of SLOs. On the right side of an SLO, click ^ to expand the Details.

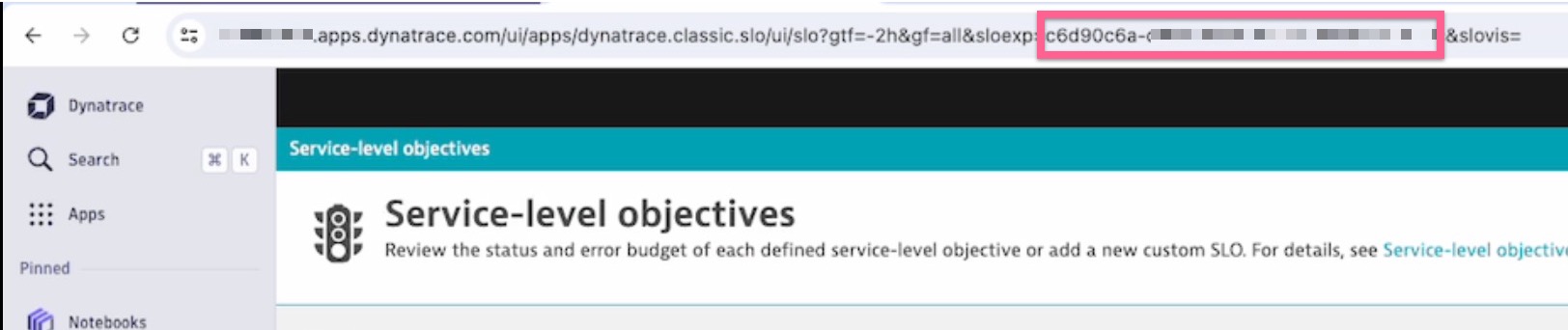

The ID is displayed in the URL following sloexp=. For example, https://.apps.dynatrace.com/ui/.../sloexp=&slovis=

For information on working with SLOs in Dynatrace, see .

Cortex automatically syncs from Dynatrace using attributes inherent to each entity.

Cortex will pull recent changes from your Dynatrace instance into the . Here, you can find new entities in Dynatrace that have not been imported into the catalog - these will have the tag New APM resource - as well as entities in the catalog that no longer exist in Dynatrace - these will have the tag APM resource not detected.

detected from Dynatrace will appear in .

See more examples in the in Cortex.
