SonarQube

SonarQube is an open-source platform that empowers developers to write clean and safe code by continuously inspecting code quality and reviewing for bugs, vulnerabilities, and code duplication.

Integrating SonarQube with Cortex allows you to:

• Pull in code smells, bugs, code coverage, vulnerabilities, and custom metrics on entity details pages

• Create Scorecards that track progress and drive alignment on projects involving your SonarQube projects

This integration is supported for both SonarQube Server and SonarQube Cloud.

How to configure SonarQube with Cortex

Self-hosted prerequisites

If you’re using a self-hosted instance of SonarQube, you’ll need to verify that your Cortex instance is able to reach the SonarQube instance.

If you're unable to directly allowlist our static IP, you can route requests through a secondary proxy in your network that has this IP allowlisted and have that proxy route traffic to your SonarQube instance.

Configure the integration

There are two options for integrating SonarQube: the default configuration method and Cortex Axon Relay, a relay broker allows you to securely connect your on-premises SonarQube data.

Default

Configure SonarQube with the default method

Prerequisites

Before getting started, create a SonarQube user token:

• SonarQube Server token instructions

• SonarQube Cloud token instructions

Configuration

1. In Cortex, navigate to the SonarQube settings page.

   1. In Cortex, click your avatar in the lower left corner, then click Settings.

   2. Under "Integrations", click SonarQube.

2. Click Add configuration.

3. Configure the SonarQube integration form:

   • Account alias: Enter the alias you will use to tie entity registrations to different configuration accounts.

   • Token: Enter your user token from SonarQube.

   • SonarQube URL: Enter the URL for your SonarQube instance.

     • For example, https://sonarcloud.io if you are on SonarQube Cloud, or https://sonarqube.mycompany.com if your organization has their own instance.

4. Click Save.

Relay broker

Configure SonarQube with Cortex Axon Relay

See Internally hosted integrations for instructions.

Integrate via custom webhook

If you’re unable to expose your SonarQube instance to be reachable by Cortex, you can set up a custom integration webhook. To learn more about SonarQube webhooks, visit their webhook documentation.

How to connect Cortex entities to SonarQube projects

Discovery

By default, Cortex will use the Cortex tag (e.g. my-entity) as the "best guess" for SonarQube project key. For example, if your Cortex tag is my-entity, then the corresponding project key in SonarQube should also be my-entity.

If your SonarQube project key don’t cleanly match the Cortex tag, you can override this in the Cortex entity descriptor.

If you’re using build-system tooling to push analysis to SonarQube, the plugin (e.g. Gradle, Maven) may be automatically generating a project key that’s different from the repo name.

Connect entities via YAML or the Cortex UI

Cortex UI

Connect SonarQube entities via the Cortex UI

1. Navigate to an entity's details page in Cortex.

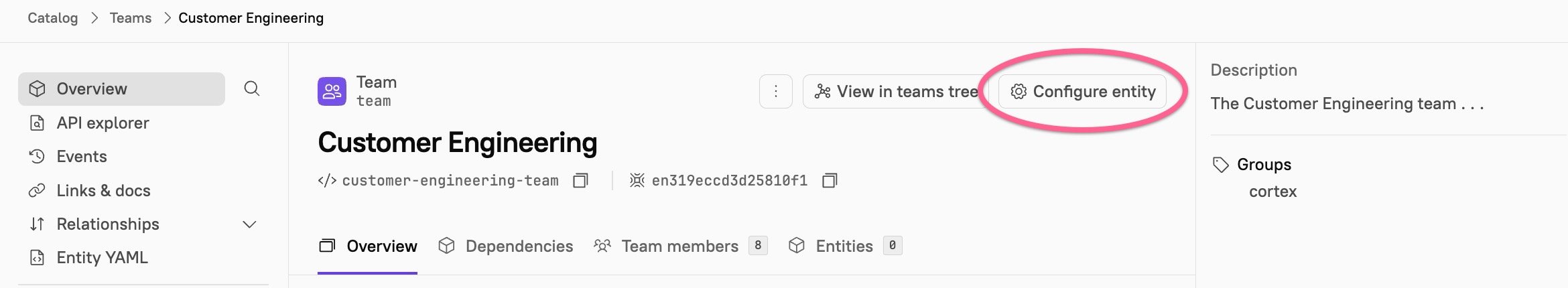

2. In the upper right corner, click Configure entity.

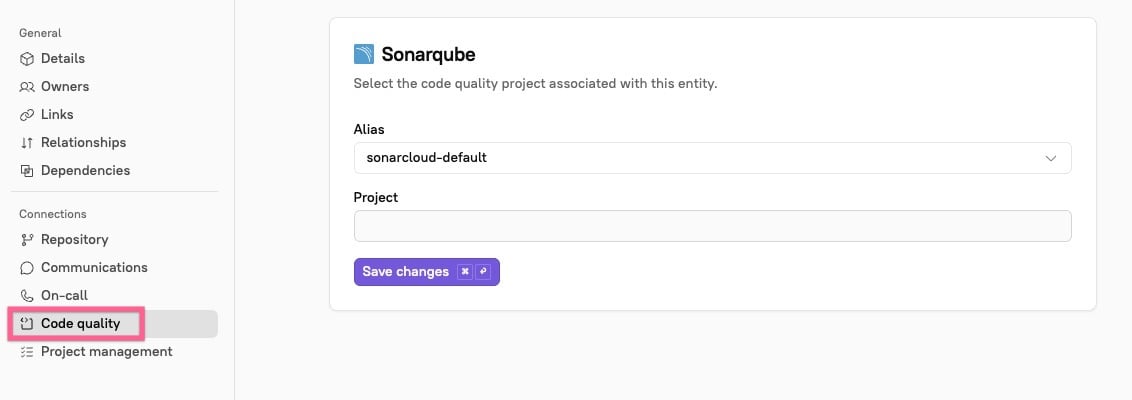

3. Click the Code quality link in the sidebar.


4. In the center of the page, configure the details for your SonarQube project:

   • Alias: If you have multiple configurations, select the one that this project is associated with.

   • Project: Enter the project's name.

5. Click Save changes.

Entity YAML

Editing the entity descriptor

When managing entities via the YAML entity descriptor, you can configure SonarQube projects under the x-cortex-static-analysis block:

x-cortex-static-analysis:
  sonarqube:
    project: sonar-project-key
    alias: sonarqube-alias

Field	Description	Required
project	Project key defined in Sonarqube	✓
alias	Alias for the configuration in Cortex (only needed if you have opted into multi-account support)

Cortex only supports one SonarQube project per entity.

Using the SonarQube integration

View SonarQube data on entity pages

Once the integration is established, data from SonarQube will be available in the Code & security page in an entity's sidebar, as well as under the Overview tab. You can pull in data on code smells, bugs, code coverage, vulnerabilities, and any custom metrics available through Sonar. You can read more about metric definitions in Sonar's documentation.

• Metrics

  • Complexity

  • Duplications

  • Issues

  • Maintainability

  • Quality gates

  • Reliability

  • Security

  • Size

  • Tests

• Code freshness

• Code coverage

Scorecards and CQL

With the SonarQube integration, you can create Scorecard rules and write CQL queries based on SonarQube projects.

See more examples in the CQL Explorer in Cortex.

Analysis freshness

Duration since the last analysis was uploaded to SonarQube for a given project (with granularity of days).

Definition: sonarqube.freshness()

Example

For a Scorecard focused on operational readiness, you can use this expression to evaluate the freshness of static analysis metrics from SonarQube.

sonarqube.freshness() <= duration("P7D")

This rule checks that an analysis has been uploaded to SonarQube within the past week, which developers can use to make sure the metrics being pulled aren't stale.

This same rule would work in a security Scorecard - by making sure a SonarQube analysis has been uploaded within the last seven days, you make sure teams are monitoring for compliance to coding rules.

Metric

Query metrics generated by static analysis of your projects and sent to SonarQube:

• Alert status

• Bugs

• Code smells

• Coverage

• Duplicated lines

• Duplicated lines density

• Lines of code

• New blocker violations

• New bugs

• New code smells

• New coverage

• New security hotspots

• New violations

• Reliability rating

• Security hotspots

• Security rating

• Security review rating

• SQALE rating

• Vulnerabilities

Definition: sonarqube.metric("<metric>")

Examples

Development maturity Scorecard

Code coverage

For a Scorecard focused on development maturity, you can set a rule to make sure entities have greater than 80% code coverage.

sonarqube.metric("coverage") > 0.80

Developers can then immediately identify entities that are falling behind to make improvements to testing effectiveness. This Scorecard can also give users a more comprehensive sense of how well code is being tested, and where gaps exist.

This rule also serves as a secondary check that a given entity is hooked up to SonarQube and reporting frequently.

Security Scorecard

Vulnerabilities

You can also use the sonarqube.metric("<metric>") expression to write a rule for a security Scorecard, making sure production entities aren't deployed with a high number of security vulnerabilities. In an initial level of a Scorecard, you might write a rule to enforce 2 or less vulnerabilities:

sonarqube.metric("vulnerabilities") <= 2

Sonar recommends 0 vulnerabilities to achieve an A rating for Security, so a higher level in your Scorecard could enforce 0 vulnerabilities:

sonarqube.metric("vulnerabilities") = 0

Code coverage

In a security Scorecard, you could also use the following expression to evaluate code coverage. The Sonar way quality gate requires code coverage to be at 80% or higher:

sonarqube.metric("coverage") > 80

Entities with low code coverage scores are more likely to be vulnerable to attack, so a lower threshold might make sense for certain security Scorecards.

Security hotspots

Rules focused on security hotspots can also make sure entities are operating with minimal security issues. Hotspots highlight a security-sensitive piece of code where the overall application security may not be impacted; Sonar recommends reviewing 100% of hotspots. In the following rule example, you can aim for less than 2 hotspots that need review:

sonarqube.metric("security_hotspots") < 2

Project existence

SonarQube project exists for an entity.

Definition: sonarqube != null

Example

For a Scorecard focused on operational readiness, you can write a rule to make sure an entity has an associated SonarQube project.

sonarqube != null

Because having a SonarQube project set would be key for an entity to be evaluated via other SonarQube-related expressions, this rule would make sense in a Scorecard's initial level.

Issues

Query issues identified by static analysis of your projects and sent to SonarQube, including bugs, vulnerabilities, code smells, and more. If the statuses are not filled in, they will default to "OPEN" and "REOPENED" statuses to prevent fetching of resolved issues.

Sonar recommends targeting 0 new issues.

Definition: sonarqube.issues("<types>", "<rules>", "<severities>", "<statuses>", "<lookback>"): List<SonarqubeIssue>

Example

You can write a rule to check that an entity has fewer than 3 major java:S2142 bugs:

sonarqube.issues(types = ["bug"], rules = ["java:S2142"], severities = ["major"]).length <= 3

Code smells

In an initial level of a Scorecard, you could write a rule to check that an entity has fewer than 5 minor code smells:

sonarqube.issues(types = ["code_smell"], severities = ["minor"]).length < 5

In higher levels of the Scorecard, you could verify that the entity has 0 code smells, per Sonar's recommended best practices:

sonarqube.issues(types = ["code_smell"]).length < 1

FAQs and troubleshooting

Does Cortex support SonarCloud?

Yes. You can integrate with SonarCloud by following the same steps as integrating with SonarQube. In the URL field, use your https://sonarcloud.io/ URL. You can also use multi-account support to add a self-hosted or SonarCloud instance by adding the URL for that instance during configuration.

I’m seeing “Socket timed out when trying to connect to SonarQube” for all of my entities in Scorecards.

This means that Cortex is unable to talk to your SonarQube instance. Make sure that your instance is running and accessible to Cortex.

I’m using Gradle and I’ve verified that my project is in SonarQube, but Cortex is still showing me an error.

Gradle automatically generates a project key which is equal to [$:]$. As a result, automatic discovery won’t work. You’ll need to override the project key in your Cortex entity descriptor.

My project is in Sonar and Cortex is able to talk to SonarQube, but my score isn’t showing up.

Try the following troubleshooting steps:

1. Make sure the project key in your YAML is exactly the same as the key in SonarQube.

2. Verify that the scores are in the “default branch” in SonarQube. If your scores are showing up in a branch-a in SonarQube, but your SonarQube default branch is main, Cortex will not be able to retrieve the scores.

3. Run the following curl command and verify there are metrics showing up in the response:

    curl -v -u : "https://[SONARQUBE HOST]/api/measures/
    component_tree?component=[SONARQUBE PROJECT KEY]&metricKeys=ncloc,coverage"

What if I want to send custom data, but I don't have control over the integration touchpoint?

If you don't have control of or access to the integration touchpoint (for example, if you're using a SonarQube notification webhook) you'll want to use the API to send custom data. You can find information on sending data to a custom data webhook here.

Why might I see the SonarQube connection error Component key not found?​

For SonarQube (and all integrations), Cortex will map the Cortex tag defined in the cortex.yaml for a given entity. For SonarQube specifically, the tag must exactly match the project ID in SonarQube. If these are not one-to-one, we recommend using the override detailed above to define the proper mapping for project ID and entity name.

Why might I see the error Sonarqube: Fail to request url on my integration page or a validity check failed error while creating a Workflow?​

This can happen if your external DNS certificate expired. Ensure that any certificates you're using are valid.
