Viewing Workflows

Workflows let you automate sequential actions and development processes using contextual data from your workspace. Workflows can be simple, like granting database permissions, or sophisticated, like creating a Jira ticket for an incident detected in Cortex.

​

Viewing the Workflows page

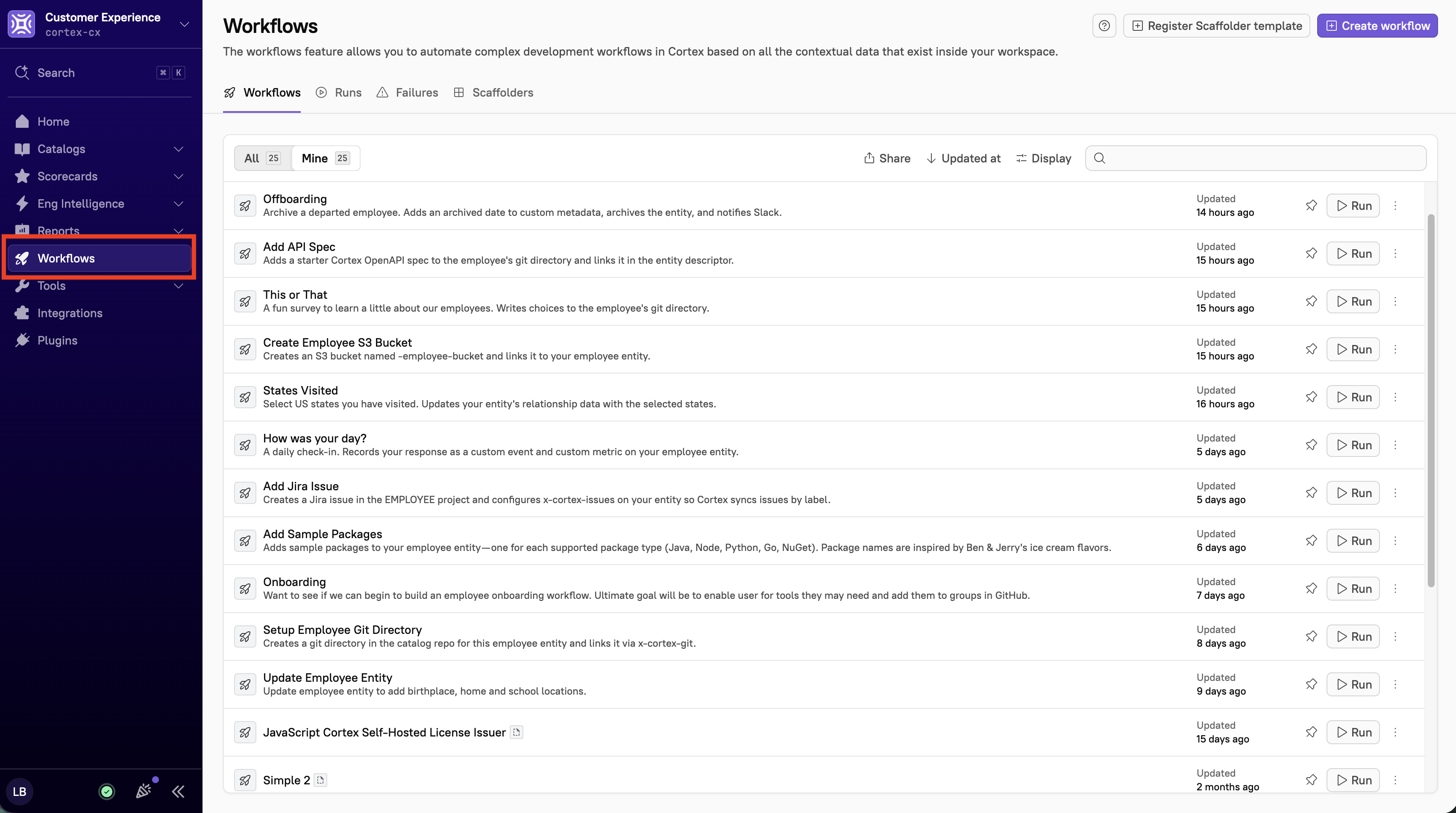

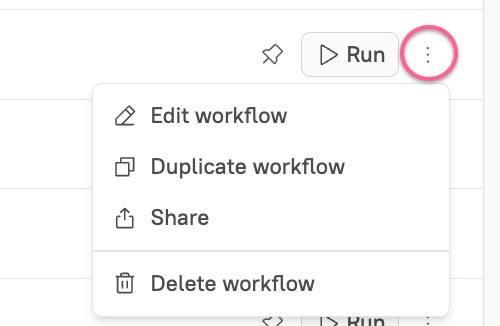

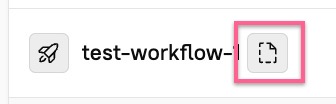

Users with the View Workflows permission can view existing Workflows. The Workflows page can be accessed from the main sidebar. In the Workflows tab, view all existing Workflows, including each Workflow’s name and description. From this page, you can edit, duplicate, run, delete, share, or create a Workflow. Click the Overflow menu to view options to edit, duplicate, share, or delete the Workflow” If a Workflow is in draft mode, a draft icon appears next to its name: If a Workflow is managed via GitOps, a Git icon appears next to its name: Click the pin icon to pin any frequently-used Workflows to the top of the page:

​

Organizing Workflows into folders

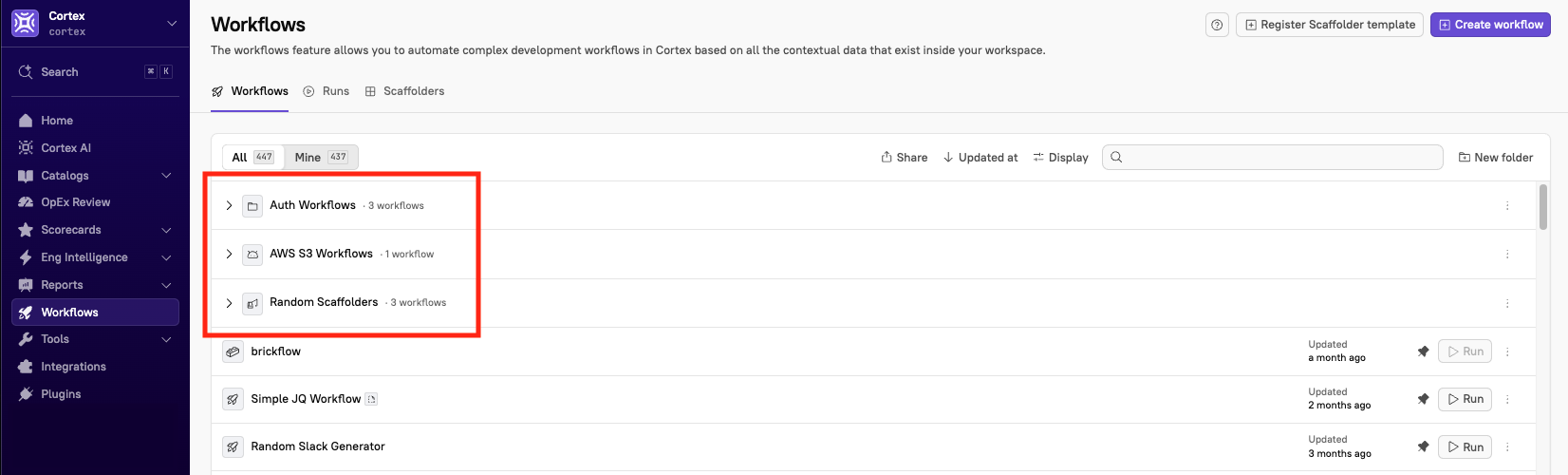

Users with the Edit Workflows permission can create and organize Workflow folders. Folders let you group related Workflows so the Workflows page stays organized as your library grows. You can create folders, nest subfolders inside them, and move Workflows between folders. Folders appear at the top of the Workflows list; click a folder to expand it and view the Workflows inside:

​

Creating a folder

1. From the main sidebar, select Workflows.

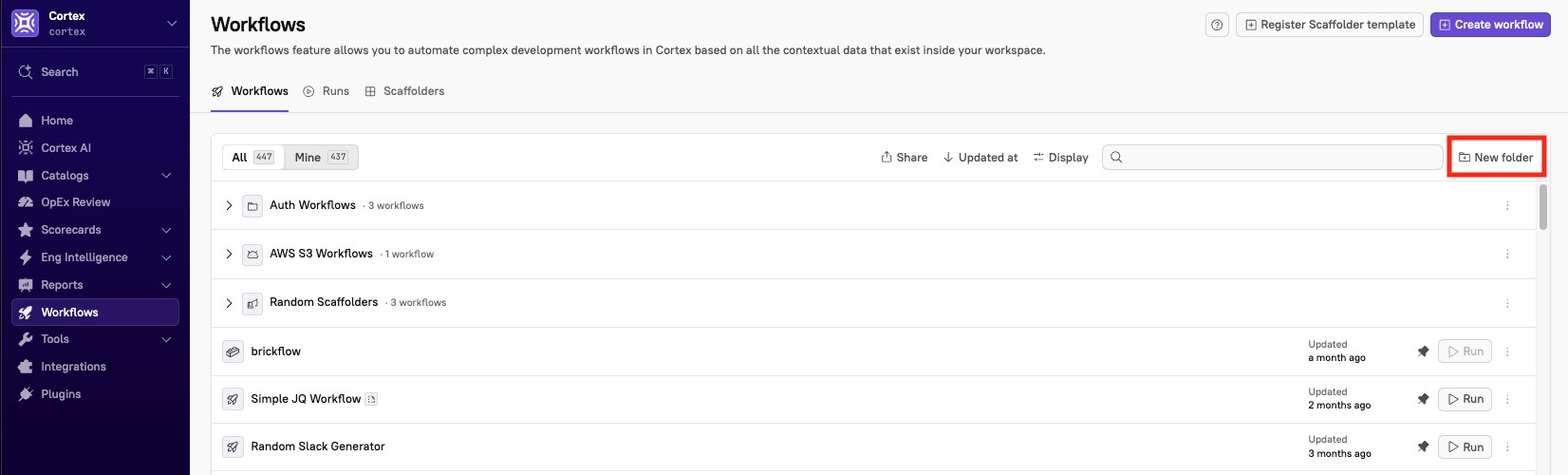

2. On the Workflows page, click New folder. The New folder window opens.

3. Do the following:
   1. Under Name, enter a descriptive name for the folder (required).
   2. Under Description, add an overview of the folder.
   3. Under Icon, select an icon to visually represent the folder.
   4. From the Parent folder drop-down, select Root to create a top-level folder, or select an existing folder to nest the new folder inside it.
4. Click Create.

​

Moving a Workflow into a folder

1. From the main sidebar, select Workflows.
2. On the Workflows page, locate the Workflow you want to move.

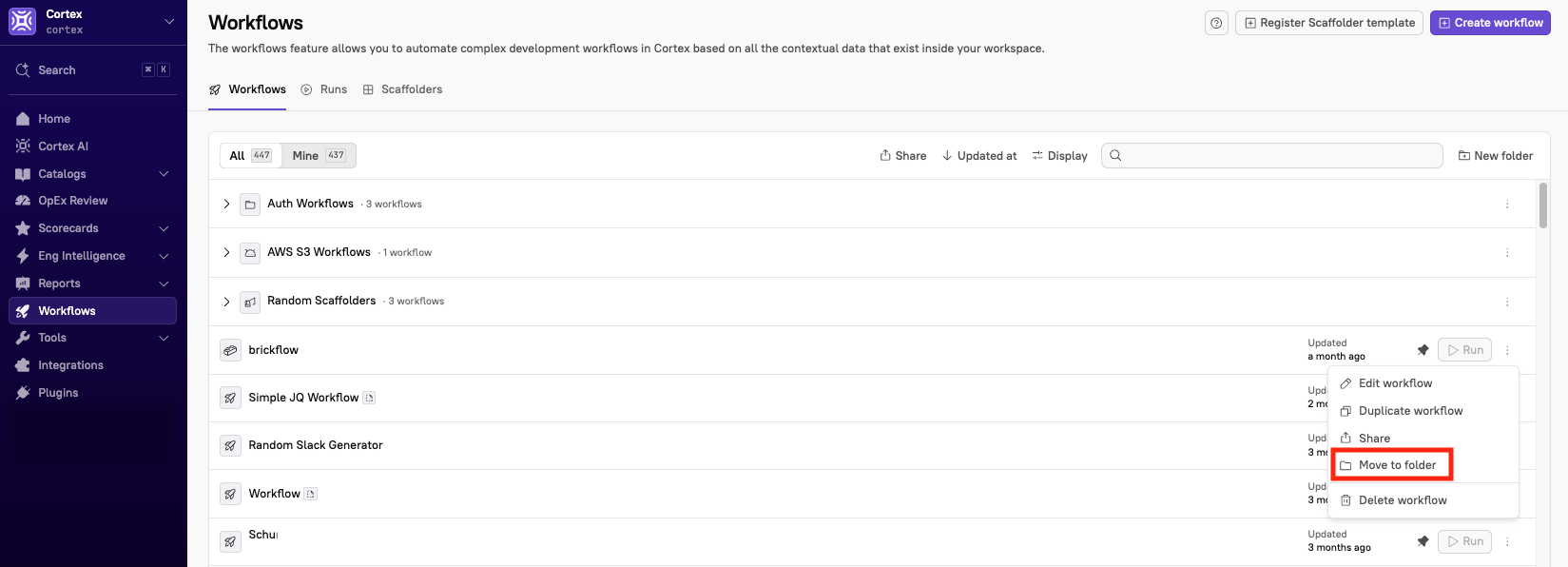

3. Click the overflow menu icon next to it, then select Move to folder. The Move workflow window opens.

4. From the Destination drop-down, select the destination folder.
5. Click Move.

​

Managing a folder

1. From the main sidebar, select Workflows.
2. On the Workflows page, locate the folder you want to manage.

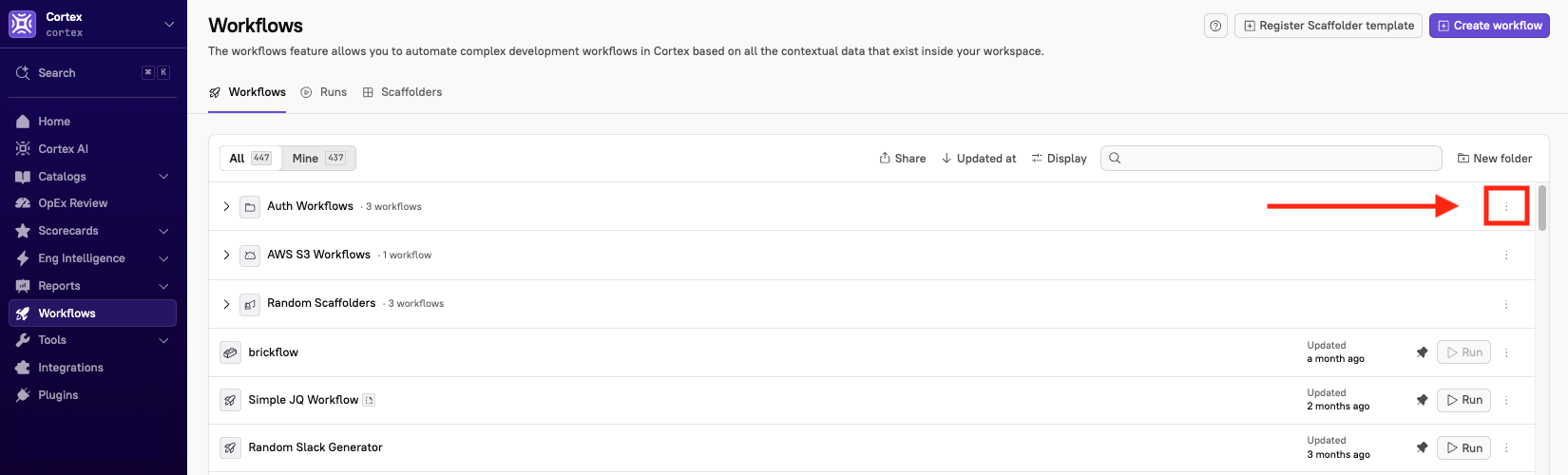

3. Click the overflow menu icon next to it.

4. Select any of the following:
   • New subfolder here - Create a subfolder inside the selected folder
   • Edit details - Change the folder’s name, icon, description, or parent folder
   • Move to… - Move the folder and its contents into another folder
   • Delete - Delete the folder

​

Viewing Workflow runs

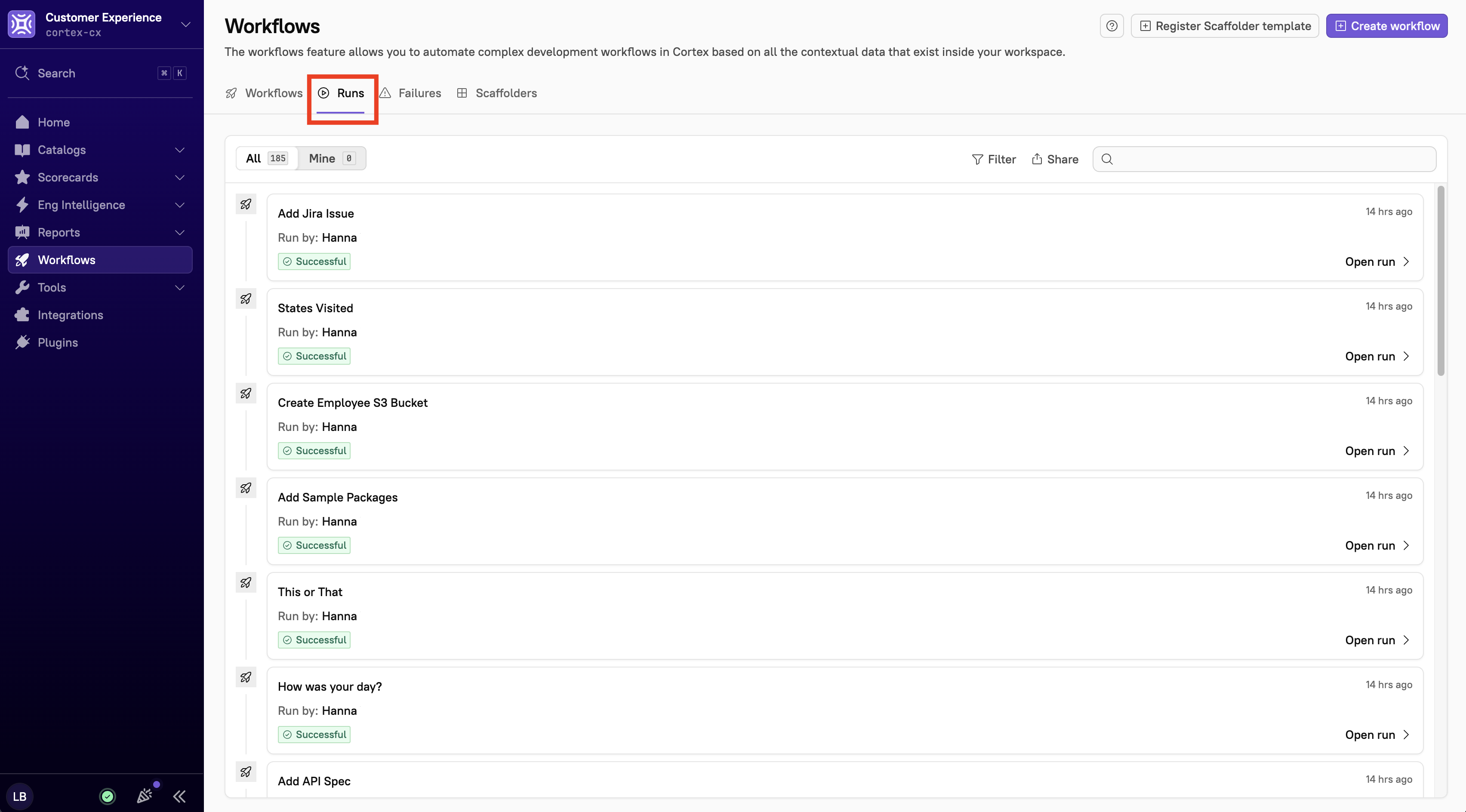

Users with the View Workflow Runs permission can view past Workflow runs. On the Workflows page, select the Runs tab to view runs for each Workflow. Select a run to see more information about it, including its status: In Progress, Paused, Successful, Canceled, or Error. While in the run, click View flowchart in the upper-right corner to view the entire Workflow step-by-step. Filtering and sharing On the Workflows page, click the Filter icon to narrow your results, or the Share icon to copy a link to the Runs page that you can send to your team. Approvals On the Workflows page, select the Waiting for approval tab to view runs that are awaiting your approval. Note that this tab is only visible if a run is waiting for your approval. Run history and retention For auditing and debugging, Cortex stores run history, including the initiator, run context, and the inputs and outputs of each action, for 30 days. Runs from deleted Workflows are not displayed.

​

Inspecting a workflow run

Run history is available from the Workflows page or the entity page where the workflow was run. Click a specific run to open the view, which shows:

• Run context - The static context values used during execution, such as context.entity, context.secrets, and context.initiatedBy.
• Inputs and outputs - The data passed into each block and the results returned.

To inspect a specific step, click any block in the visual to view its input and output payloads and execution status.

​

Tracking API‑initiated runs

Runs triggered through the Workflow Runs API appear on the Runs tab alongside runs started from the UI, marked with a key icon next to the initiator’s name. Runs that failed to initiate via the API appear on the Failures tab. Click View details on a failed entry to see the error. Note that the Failures tab only appears when there are failed runs.

​

Viewing Scaffolder templates

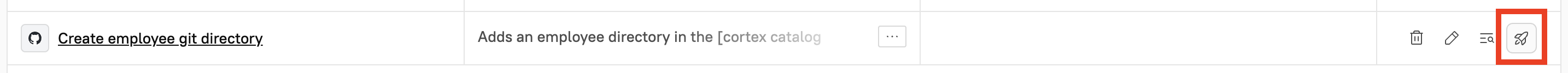

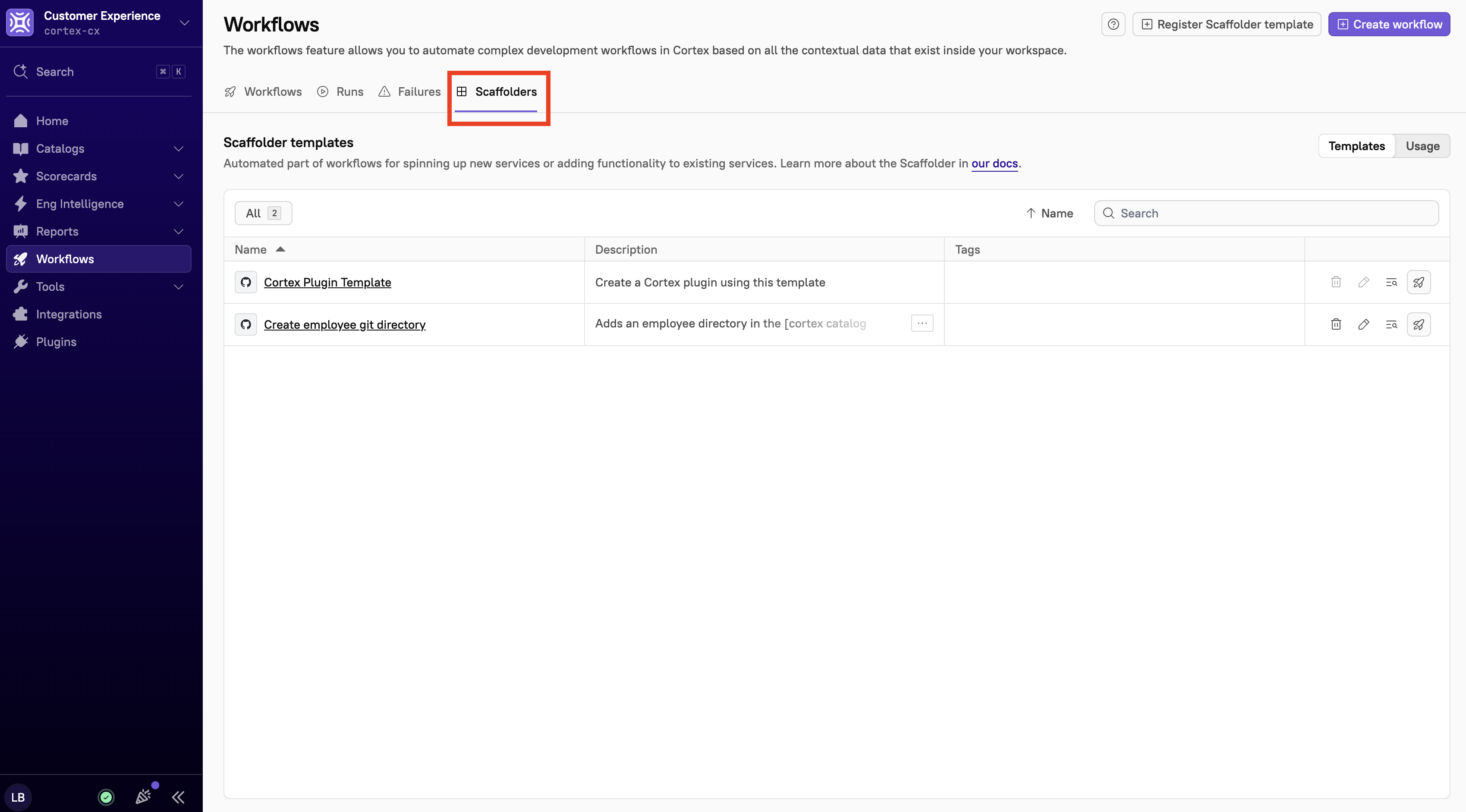

Users with the View Workflows permission can view Scaffolder templates on the Workflows page. On the Workflows page, select the Scaffolders tab to view, edit, or delete registered Scaffolder templates. To preview a Scaffolder template, click the preview icon next to it: To edit a template, click the pencil icon next to it: To create a Workflow that contains a Scaffolder step with a particular template, click the rocket ship icon next to it: To delete a Scaffolder template, click the trash icon next to it:
