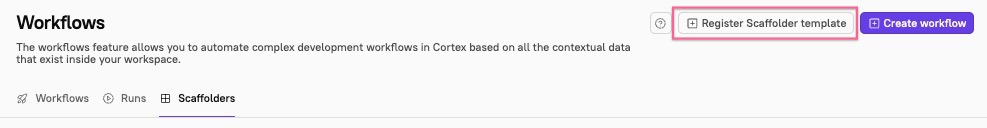

; }; You can use a Workflow in Cortex to scaffold new Machine Learning (ML) projects with best practices built in from the start. ### Step 1: Create an entity type called ML Model In Cortex, [create a custom entity type](/ingesting-data-into-cortex/entities-overview/entities/adding-entities/entity-types#creating-a-custom-entity-type) called ML Model (with a unique entity type identifier `ml-model`). ### Step 2: Register the cookiecutter template in Cortex Follow the [Cortex documentation on registering a Scaffolder template](/streamline/workflows/scaffolder), You must have the `Configure Scaffolder templates` permission to follow these steps. 1. In Cortex, navigate to **Workflows** from the main nav. In the upper right corner of the page, click **Register Scaffolder template**. In the upper right corner click 'Register Scaffolder template.' 2. Configure the template details: * **Provider**: Select which Git provider you are using. * **Name**: Enter a name for the template, such as "MLOps cookiecutter" * **Description**: Add a description, such as "A standardized, flexible project structure for MLOps" * **Tags**: Optionally, add tags to describe the template. We recommend adding a tag such as "mlops". 3. Under "Configuration," fill in the fields: * **Git provider configuration**: Enter the configuration, e.g., `default` * By default, the option **Use this configuration for all git operations** is **enabled**. When enabled, Cortex uses the selected configuration for **all** Git operations (e.g., fetching the template details, populating the form options, and creating the new repo or Pull Request). The form options will be filtered to only those organizations or repositories that the selected configuration has access to. * With this setting **disabled**, you can use a single Scaffolder template with multiple organizations/configurations. While the selected configuration must still have to access the template's repository, the remaining Git operations will be run dynamically based on the user's form selections. The Scaffolder form options will be populated using data from all configurations. Then, Cortex will automatically use a configuration with access to the selected organization (if scaffolding a new repository) or repository (if scaffolding a new PR) for all remaining Git operations. * **Git URL**: Enter the git URL where your template lives. * In this example we are using the [MLOps cookiecutter template in Cortex's Solutions repository](https://github.com/cortexapps/solutions/tree/master/workflows/scaffolders/cookiecutter-mlops): `https://github.com/cortexapps/solutions/tree/master/workflows/scaffolders/cookiecutter-mlops` * **Configuration requirements**: Select `Neither`, as this Scaffolder will create entities for the `ml-model` type rather than creating entities of the `service` type. * **Visibility**: When creating a new repository choose the default visibility of the repository. If you do not specify, the template defaults to setting a new repository as private. * The available options depend on the Git provider. The `Public` setting only works if the org containing the repository allows it. The `Internal` setting only works for GitHub Enterprise accounts. * When running a Workflow that contains a Scaffolder block, you can configure an override to change the repo visibility. * **Create cortex.yaml in git when creating a new service**: Disable this setting, as the Workflow you run will include a block to add the new entity to your workspace. * **Show README.md during Scaffolding**: When enabled, the project's README.md will be displayed when inputting the variables to use while rendering the template. If there is no README.md, nothing will be shown. 4. Click **Register Scaffolder template**. ### Step 3: Create a Workflow with a Scaffolder block You can use the [Cortex CLI](https://pypi.org/project/cortexapps-cli/) to add the example Workflow to your workspace. This allows you to quickly set up the example configuration then iterate on it for your own use case. Expand the tile below to learn more: 1. Save the Workflow example YAML file below: ```yaml theme={null} name: New ML Model tag: scaffolder-workflow-a1d4d2d3-624c-473f-a9f2-b933a44a92df description: "Workflow that leverages the [cookiecutter-mlops](https://github.com/Chim-SO/cookiecutter-mlops)\ \ template to create new logical, reasonably standardized, but flexible project\ \ structure for MLOps." isDraft: true filter: type: GLOBAL runResponseTemplate: "Your repository is ready! \nPlease browse to {{actions.create-repo.outputs.response.gitURL}}\n\ The Model is also being tracked in Cortex. Please browse to https://app.getcortexapp.com/admin/index?tag={{actions.slugify-project-name.outputs.result}}" failedRunResponseTemplate: null restrictActionCompletionToRunnerUser: false actions: - name: Gathering Model Details... slug: model-details schema: inputs: - name: Project Name description: null key: project-name required: false defaultValue: null placeholder: null validationRegex: null type: INPUT_FIELD - name: Description description: null key: description required: false defaultValue: null placeholder: null validationRegex: null type: TEXTAREA_FIELD - name: License description: null key: license required: false options: - MIT - BSD-3-Clause - No license file optionsLabels: - MIT - BSD-3-Clause - No license file defaultValue: null placeholder: null allowAdditionalOptions: false type: SELECT_FIELD - name: s3 Bucket description: null key: s3-bucket required: false defaultValue: null placeholder: "[Optional] do not include 's3://'" validationRegex: null type: INPUT_FIELD - name: AWS Profile description: null key: aws-profile required: false defaultValue: default placeholder: default validationRegex: null type: INPUT_FIELD - name: Python Interpreter description: null key: python-interpreter required: false options: - Python - Python3 optionsLabels: - Python - python3 defaultValue: null placeholder: null allowAdditionalOptions: false type: SELECT_FIELD inputOverrides: [] jsValidatorScript: "" type: USER_INPUT outgoingActions: - slugify-project-name isRootAction: true - name: Getting Ready to Scaffold New Repository... slug: slugify-project-name schema: expression: .actions."model-details".outputs."project-name" | ascii_downcase | gsub(" ";"-")|gsub("_";"-") type: JQ outgoingActions: - create-repo isRootAction: false - name: Creating Repository in GitHub... slug: create-repo schema: scaffolderTemplateId: st38e74ce20dc23c29 createNewRepository: true createService: false inputOverrides: - inputKey: project_name outputVariable: actions.model-details.outputs.project-name editable: false type: VALUE - inputKey: author_name outputVariable: context.initiatedBy.email editable: false type: VALUE - inputKey: description outputVariable: actions.model-details.outputs.description editable: false type: VALUE - inputKey: repo_name outputVariable: actions.slugify-project-name.outputs.result editable: false type: VALUE - inputKey: open_source_license outputVariable: actions.model-details.outputs.license editable: false type: VALUE - inputKey: s3_bucket outputVariable: actions.model-details.outputs.s3-bucket editable: false type: VALUE - inputKey: aws_profile outputVariable: actions.model-details.outputs.aws-profile editable: false type: VALUE - inputKey: python_interpreter outputVariable: actions.model-details.outputs.python-interpreter editable: false type: VALUE - inputKey: publisherOrg outputVariable: variables.org editable: false type: VALUE - inputKey: publisherRepoName outputVariable: actions.slugify-project-name.outputs.result editable: false type: VALUE - inputKey: publisherBranch outputVariable: variables.branch-name editable: false type: VALUE - inputKey: publisherCommitMessage outputVariable: variables.commit-msg editable: false type: VALUE - inputKey: publisherRepoVisibility outputVariable: variables.visibility editable: false type: VALUE type: SCAFFOLDER outgoingActions: - add-entity-to-catalog isRootAction: false - name: Adding Entity to Catalog... slug: add-entity-to-catalog schema: inputs: body: "openapi: 3.0.1\ninfo:\n title: {{actions.model-details.outputs.project-name}}\n\ \ x-cortex-tag: {{actions.slugify-project-name.outputs.result}}\n x-cortex-type:\ \ ml-model\n x-cortex-git:\n github:\n repository: {{variables.org}}/{{actions.slugify-project-name.outputs.result}}\n\ \ x-cortex-groups:\n - ml-model \n " dryRun: false appendArrays: false failIfEntityDoesNotExist: false integrationAlias: null actionIdentifier: cortex.createOrPatchEntity type: ADVANCED_HTTP_REQUEST outgoingActions: - notify-end-user isRootAction: false - name: Notifying User... slug: notify-end-user schema: channel: demos message: "Your repository is ready! \nPlease browse to {{actions.create-repo.outputs.response.gitURL}}\n\ The Model is also being tracked in Cortex. Please browse to https://app.getcortexapp.com/admin/index?tag={{actions.slugify-project-name.outputs.result}}" type: SLACK outgoingActions: [] isRootAction: false runRestrictionPolicies: [] iconTag: null variables: - slug: commit-msg type: STRING defaultValue: Initial Commit - slug: branch-name type: STRING defaultValue: main - slug: visibility type: STRING defaultValue: PUBLIC - slug: org type: STRING defaultValue: ``` 2. Use the [Cortex CLI](https://pypi.org/project/cortexapps-cli/) to run this command, using the path to your Workflow YAML file: `cortex workflows create -f ` ### Step 4: Run the Workflow While viewing the Workflow in Cortex, click **Run**. When you run the Workflow, the following events happen: * The User Input block runs, collecting input from the user running the Workflow * A new ML project is scaffolded in your Git repository, using the information collected from the initial User Input block * A corresponding new entity (of the type `ml-model`) is created in your workspace * A notification is sent to the Slack channel you configured in the Slack block of the Workflow ## Related topics - [Workflows](/guides/product-areas/workflows.md) - [Managing catalogs](/ingesting-data-into-cortex/catalogs/managing-catalogs.md) - [Cortex quick start guide](/get-started/quickstart.md)
